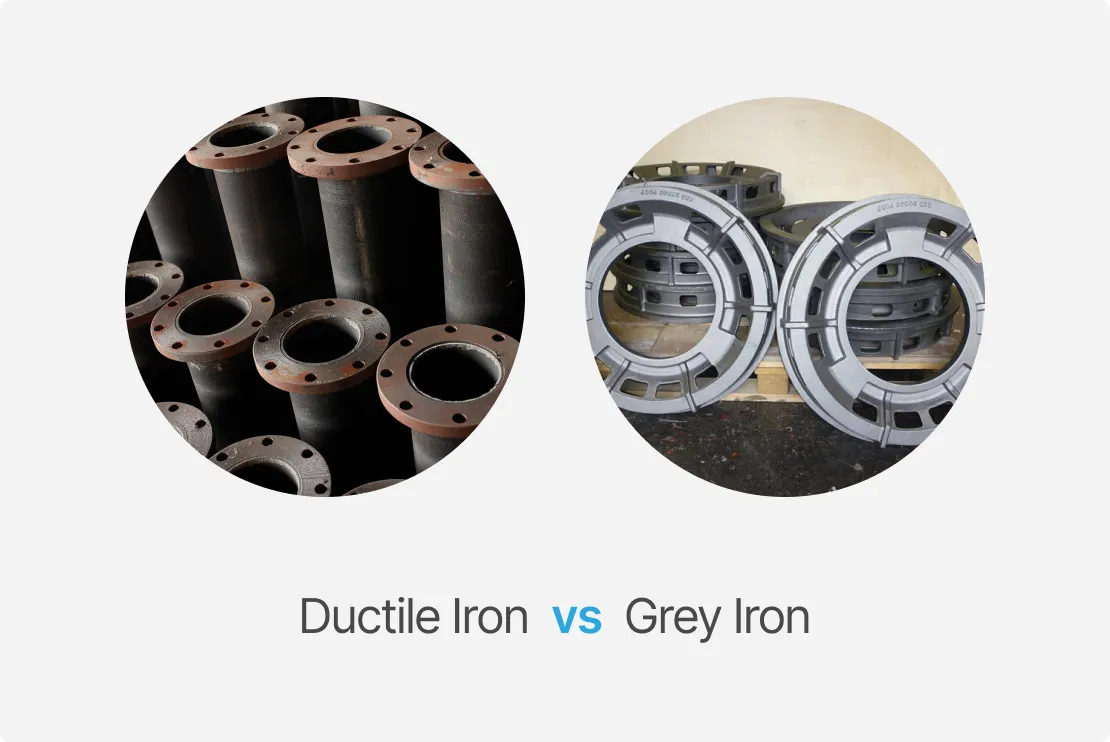

In the world of metallurgy and engineering, selecting the right material is crucial. Ductile iron and grey iron are two commonly used cast iron types, each with unique properties and applications. Understanding their differences helps in making informed decisions for various industrial needs.
Ductile iron, also known as nodular cast iron, contains graphite in the form of spheroidal nodules. This structure imparts enhanced ductility and toughness compared to other cast irons.
Carbon: 3.2-3.6%
Silicon: 2.2-2.8%
Magnesium: 0.02 - 0.1% (as a nodulizing agent)
Tensile Strength: 65,000 - 100,000 psi
Yield Strength: 40,000 - 70,000 psi
Elongation: Up to 18%
Hardness: 170 - 210 HB
These properties make ductile iron suitable for components requiring
high strength and impact resistance.
Automotive components (e.g., crankshafts, gears)
Pipes and fittings for water and sewage
systems
Manhole cover
Agricultural machinery
Heavy-duty industrial equipment
Grey iron features graphite in the form of flakes, which create stress concentration points, leading to lower tensile strength and ductility. However, this structure provides excellent vibration damping and machinability.
Tensile Strength: 20,000–60,000 psi Elongation: <11% Hardness: 180–260 HB Excellent: vibration damping Cost-effective: production
Machine tool bases
Engine blocks
Pumps and compressors
Manhole covers
| Property | Ductile Iron | Grey Iron |
|---|---|---|
| Tensile Strength | 65,000 – 100,000 psi | 20,000 – 60,000 psi |
| Yield Strength | 40,000–70,000 psi | Not Defined |
| Elongation | Up to 18% | <1% |
| Hardness (HB) | 170–210 | 180–260 |
Ductile iron offers superior wear resistance and can handle higher loads, making it ideal for heavy-duty applications. Grey iron, while less robust, provides adequate performance for less demanding uses.
1. Castability
Both materials have good castability, but grey iron is easier to cast
into complex shapes.
2. Machinability
Grey iron is easier to machine due to its graphite flake structure.
3. Weldability
Ductile iron can be welded with proper techniques; grey iron is
generally not weldable.
Grey iron is less expensive to produce, making it suitable for cost-sensitive projects. Ductile iron, while more costly, offers better performance and longevity, providing greater value over time.
Consider the mechanical demands and environmental conditions of your project. Ductile iron is preferable for high-stress environments, while grey iron suffices for static or low-stress applications.
If initial cost is a primary concern, grey iron may be the choice. However, for applications where maintenance and durability are critical, investing in ductile iron can be more economical in the long run.
1. Choose Ductile Iron
For components requiring high strength, impact resistance, and
durability.
2. Choose grey Iron
For parts where vibration damping and cost-effectiveness are
prioritised.
Both ductile and grey iron have their places in industrial applications. The choice depends on specific project requirements, including mechanical demands, environmental conditions, and budget constraints. Understanding the properties and advantages of each material ensures optimal performance and cost-efficiency.
Yes, ductile iron has higher tensile and yield strength compared to grey iron, making it more suitable for high-stress applications.
In many cases, yes. Ductile iron can replace grey iron, especially when enhanced strength and ductility are required.
The graphite flakes in grey iron act as chip breakers and provide lubrication during machining, enhancing its machinability.
Generally, yes. Ductile iron is more costly to produce due to its composition and processing requirements.
Ductile iron offers better corrosion resistance, especially when properly treated or coated.
