When it comes to selecting materials for infrastructure, durability,
strength, and reliability are non-negotiable. Among the most common
materials used are cast iron and ductile iron. While both are
types of cast
iron alloys, they serve different purposes—and one often proves superior in
high-performance environments.
This article explores the top five reasons why ductile iron is better than
cast iron for infrastructure, using a technical yet readable lens backed by
real-world applications.

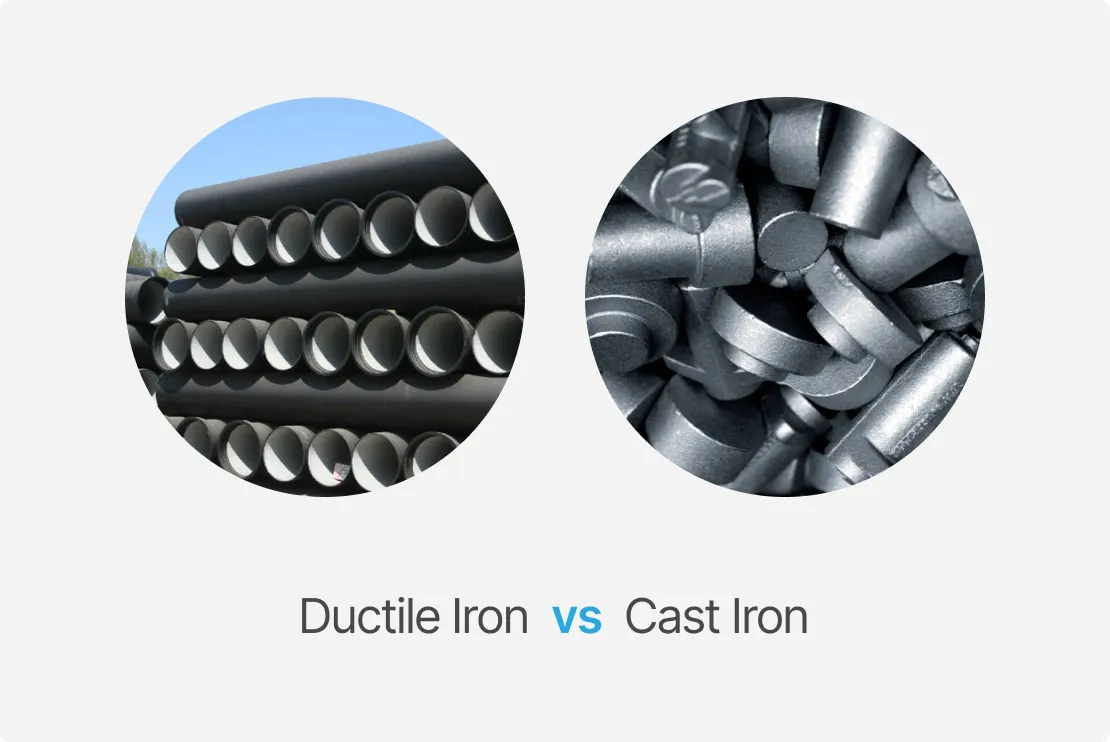

Ductile Iron vs Cast Iron: Which One Is Stronger?
What Is Ductile Iron?
Ductile iron, also known as nodular cast iron or spheroidal graphite iron, is a type of cast iron with graphite nodules instead of flakes. This microstructure improves ductility, impact resistance, and mechanical strength, making it ideal for dynamic and load-bearing applications.
Ductile Iron used in:
1. Water and sewer pipes
2.
Manhole covers
3. Automotive components
4. Heavy machinery
What Is Cast Iron?
Gray cast iron, or simply cast iron, contains carbon in the form of graphite flakes. While it has excellent vibration damping and machinability, it’s significantly more brittle than ductile iron and can fracture under heavy loads or impacts.
Cast Iron used in:
1. Engine blocks
2. Cookware
3. Pipe fittings
4. Machine bases
Top 5 Reasons Why Ductile Iron Outperforms Cast Iron
1. Higher Strength and Flexibility
One of the most important advantages of ductile iron is its superior tensile
and yield strength. Where cast iron fractures under stress, ductile iron
bends and absorbs energy.
Tensile strength: Up to 100,000 psi (ductile) vs ~30,000 psi (gray)
Elongation: Up to 18% (ductile) vs less than 1% (gray)
This makes ductile iron more reliable in high-pressure pipelines, bridges,
and load-bearing components.
2. Greater Resistance to Impact and Fatigue
Ductile iron's nodular graphite structure enhances its ability to resist
shock, cyclic loads, and fatigue failure. This is especially crucial in
infrastructure exposed to traffic, weather fluctuations, and seismic
activity.
Cast iron, on the other hand, has a flake structure that creates stress
points and leads to early failure under dynamic loads.
3. Superior Corrosion Resistance
In environments exposed to moisture, chemicals, and changing temperatures,
corrosion can shorten a material's lifespan. Ductile iron performs better in
corrosive conditions, especially when coated or lined.
Its lower carbon content and denser microstructure allow it to resist
oxidation and chemical attack more effectively than traditional grey iron.
4. Longer Lifespan and Lower Maintenance
Thanks to its structural toughness and resistance to environmental degradation, ductile iron lasts 40-100+ years in underground infrastructure, often with minimal maintenance. Gray iron may be cheaper upfront but tends to incur higher replacement and maintenance costs over time due to cracks and corrosion.
5. Versatility in Infrastructure Applications
Ductile iron is used across a wide range of applications, including:
1. Urban water supply systems
2. Sewer networks
3. Gas pipelines
4. Industrial waste management
Its ability to be cast into complex shapes and retain strength makes it
ideal for modern infrastructure projects with evolving demands.
Ductile Iron vs Cast Iron: A Comparative Table
| Property | Ductile Iron | Grey Cast Iron |
|---|---|---|
| Graphite Form | Spheroidal nodules | Flake graphite |
| Tensile Strength | 65,000 - 100,000 psi | 20,000 - 60,000 psi |
| Ductility (Elongation) | Up to 18% | Less than 1% |
| Impact Resistance | High | Low |
| Corrosion Resistance | Moderate to High | Low |
| Weldability | Possible with care | Poor |
| Machinability | Moderate | Excellent |
| Vibration Damping | Moderate | Excellent |
| Cost | Higher upfront | Lower upfront |
| Maintenance Costs | Lower long-term | Higher long-term |
When Should You Choose Cast Iron Over Ductile Iron?
Despite its advantages, ductile iron may not always be the ideal material.
Choose cast iron when:
1. Cost is a top priority
2. Parts will not be exposed to dynamic or tensile loads
3. High vibration damping is needed (e.g., machine tool bases)
Choose ductile iron when:
1. Strength, impact resistance, or corrosion resistance is essential
2. Longevity and low maintenance are desired
3. Infrastructure will face harsh environmental conditions
FAQS: Ductile Iron vs Cast Iron
1. What are the advantages of ductile iron over cast iron?
Ductile iron offers higher strength, better impact resistance, and longer service life in demanding environments compared to traditional cast iron.
2. Why is ductile iron preferred in infrastructure projects?
It combines strength, flexibility, and corrosion resistance—ideal for pipelines, sewer systems, and heavy-load components.
3. Is ductile iron more expensive than cast iron?
Yes, it has a higher upfront cost but typically lower lifetime cost due to reduced maintenance and longer lifespan.
4. Can ductile iron be welded?
Yes, with proper preheating and post-weld heat treatment. Cast iron is generally more difficult to weld.
5. Which iron type lasts longer underground?
Ductile iron typically outlasts cast iron in underground installations due to its superior toughness and corrosion resistance.
Conclusion
While both ductile and cast iron have their roles in engineering, ductile
iron stands out for infrastructure due to its mechanical strength,
resilience, and longevity in environments where reliability and performance
matter most; ductile iron consistently delivers.
Choosing ductile iron is an investment in durability, safety, and long-term
value, making it the smart choice for modern infrastructure challenges.
